Hardware

Modular Design

#

The PlantCtrl hardware has been redesigned from a single large PCB into a more flexible, modular system. This allows users to only build or use the components they actually need for their specific setup.

The system now consists of a MainBoard which acts as the controller and several pluggable or connectable modules.

MainBoard (ESP32-C6)

#

• Processor: ESP32-C6 (RiscV)
• Connectivity: WiFi, Bluetooth, Zigbee/Thread support
• Form Factor: Compact main board with headers for modules
• Fully Open Source: Designed in KiCad

Available Modules

#

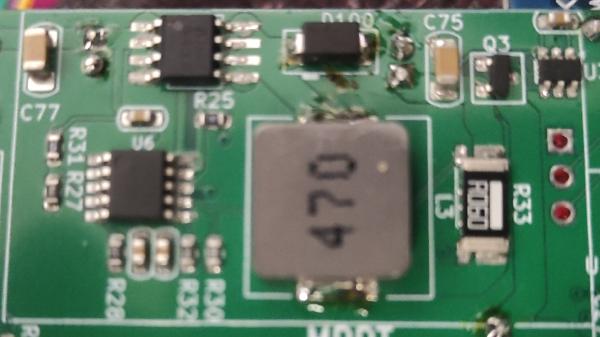

• MPPT Charger: Efficient solar charging for batteries.
• Pump Driver: High-current outputs for pumps and valves.
• Sensor Interface: Support for multiple moisture sensors.
• Light Controller: For LED nightlights or growth lights.

Capabilities

#

• Moisture Sensors: Supports multiple capacitive or resistive sensors via expansion modules.
• Pumps/Valves: Support for multiple independent watering zones.
• Power:
  • Solar powered with MPPT
  • Battery powered with optional Battery Management (Fuel Gauge)
  • Can also be used with a standard power supply (7-24V)
• Efficient Power: Use of high-efficiency DC-DC converters for 3.3V and peripherals.
